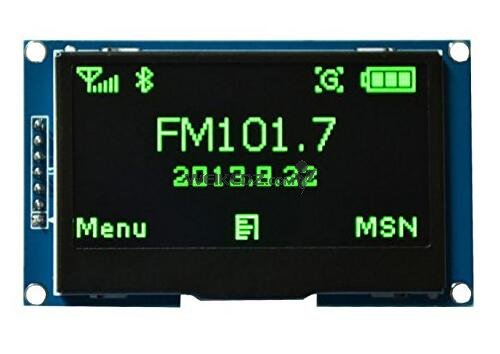

2.42"12864 Green OLED Display Module FOR Arduino

    Weike Electronics is a professional manufacturer and exporter that is concerned with the design,
development production and marketing of arduino, 3d printers, raspberry pi and STM32.
Our Dream is to make the best price and best quality produce for customers.
So we would like to receive your valuable suggestions for our products and we can improve them for you.





Contact: Sophie

Phone: 13790385217

 Tel:0755-66803279

Email: sophie@weikedz.com

Add: No.1 Longguan Road, Longhua,Shenzhen,Guangdong,518000


Features
Diagonal Screen Size:2.42"
Resolution: 128 * 64
Driver IC: SSD1309

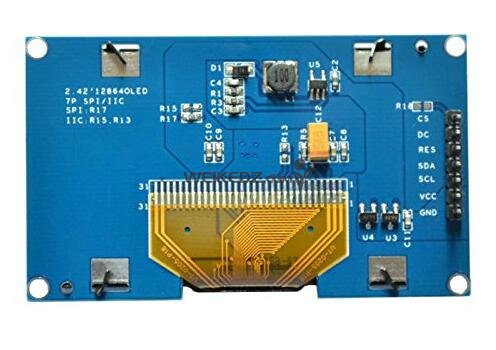

SPI interface definition:
1.GND (power ground)
2.VCC (power supply positive)
3.SCL (clock line)
4.SDA (data line)
5.RES (reset line)
6.DC (data / command)
7.CS (chip select)

Seventh leg leads CS signal default; if not, you can go at this time R18 welding CS signal directly to ground. Operation is very convenience.

Interface Selection: to choose SPI or IIC interface through R15, R17, R13

This module defaults to the SPI interface, R17 welding, R15, R13 is not welding
