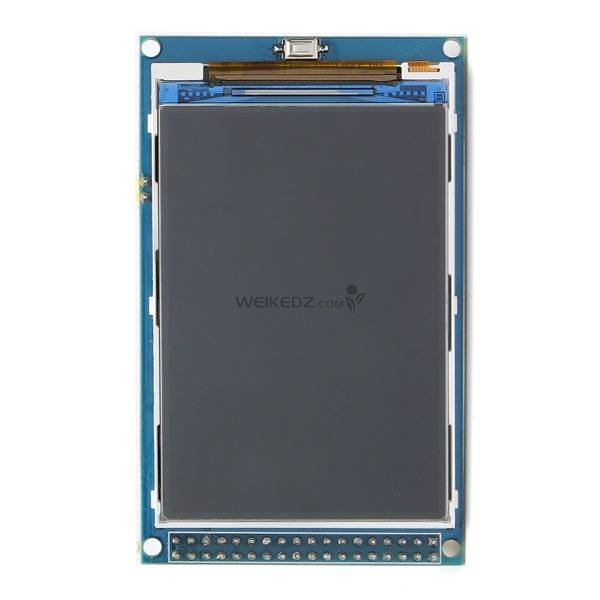

3.2 Inch 320 X 480 TFT LCD Display Module Support Arduino Me

    Weike Electronics is a professional manufacturer and exporter that is concerned with the design,
development production and marketing of arduino, 3d printers, raspberry pi and STM32.
Our Dream is to make the best price and best quality produce for customers.
So we would like to receive your valuable suggestions for our products and we can improve them for you.





Contact: Sophie

Phone: 13790385217

 Tel:0755-66803279

Email: sophie@weikedz.com

Add: No.1 Longguan Road, Longhua,Shenzhen,Guangdong,518000



Description:
3.2 Inch TFT LCD with 262K color 480x 320 resolutions.The controller of this LCD module is HX8357B, it supports 16-wires DataBus interface.Moreover, this module includes the 5V-3.3V power conversion circuit and Level conversion circuit, This Module can Directly inserted into the Arduino Mega2560 Board ,it also includes the SD card socket and SPI FLASH circuit

Feature:
Support Arduino Mega2560 Directly inserted
With Full-angle IPS TFT panel
OnBorad level conversion chip for 5V/3.3V MCU
Compatible with 3.3/5V operation voltage level
Compatible with Arduino-Series development Board.
(Please notice:This Screen is not touch screen)
Provided 12-examples with Arduino ,3-examples with STM32
With SD Card Socket
With SPI FLASH circuit

Parameter:

Display Type:  3.2 inch a-si TFT LCD Module
Glass Type:  TFT IPS(Full-Angle)
Display Resolution:  480 X RGB X 320 Pixels
Back light:  6 chip HighLight white LEDs
Control IC:  ILI9481
Interface:  16Bit parallel interface
PCB Module size:  89.92mm X 54.25mm
LCD Area(WxHxT):  50.74mm X 78.35mm X 1.88mm
Active Area(WxH):  67.68mm X 45.12mm
