UNO R3 ATmega328P Board + 2.4 Inch TFT LCD Screen Module
$
Weike Electronics is a professional manufacturer and exporter that is concerned with the design, development production and marketing of arduino, 3d printers, raspberry pi and STM32. Our Dream is to make the best price and best quality produce for customers. So we would like to receive your valuable suggestions for our products and we can improve them for you.

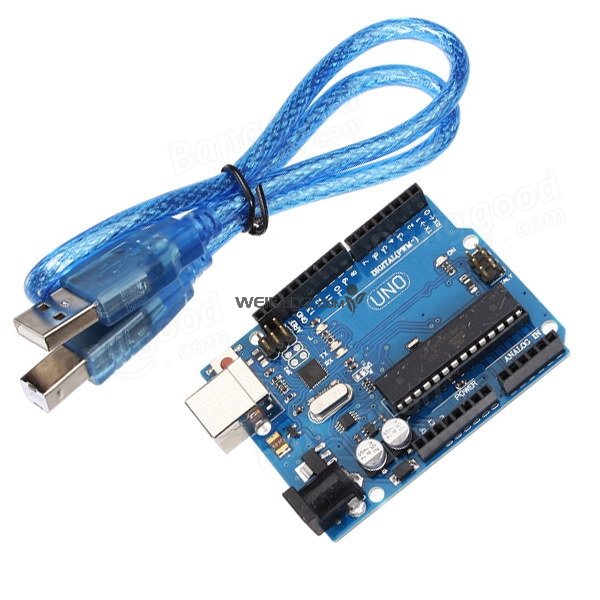

Description: UNO R3 board is 100% compatible with original Arduino, now it has perfect quality and performance . Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements theProcessing/Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux). This is the new Tosduino Uno R3. In addition to all the features of the previous board, the Uno R3 now uses an ATmega16U2 instead of the ATmega8U2 chip. This allows for faster transfer rates, no drivers needed for Linux or Mac (inf file for Windows is needed), and the ability to have the Uno show up as a keyboard, mouse, joystick, etc.

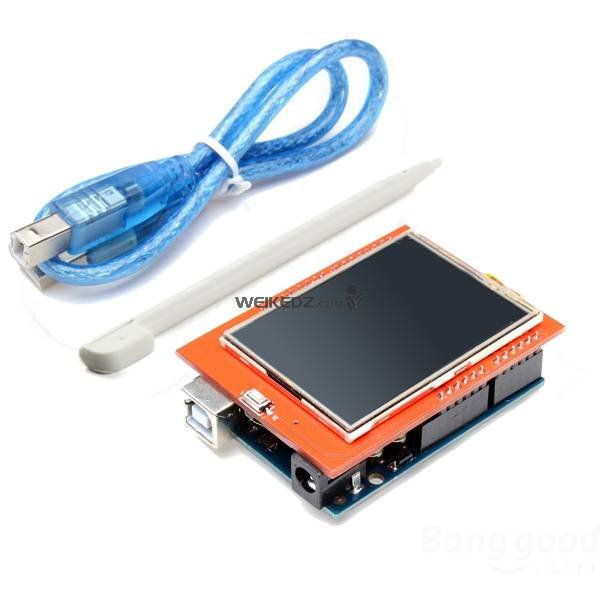

2.4 Inch TFT LCD Touch Screen Module:
Features: 2.4 inch LCD TFT display Colorful, 18-bit 262,000 different shades 4-wire resistive touchscreen 240 x 320 resolution Spfd5408 controller with built in video RAM buffer 8 bit digital interface, plus 4 control lines Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD 5V compatible, use with 3.3V or 5V logic Size: 71 x 52 x 7mm
