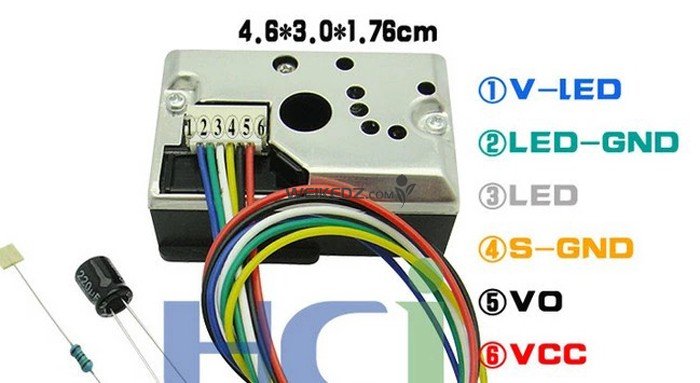

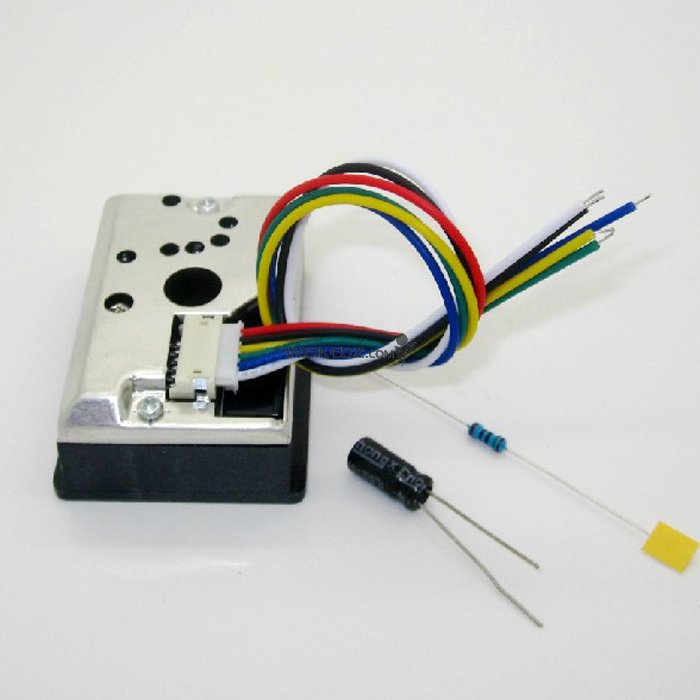

Package:
1, GP2Y1010AU0F dust sensors (1)
2, 150ohm resistor (1)
3, 220uF caps (1)
4, 6pin connector (1)
An overview of the Sharp optical dust sensor (GP2Y1010AU0F) in the detection of very fine particles, such as cigarette smoke, is particularly effective, And is commonly used in air purification systems

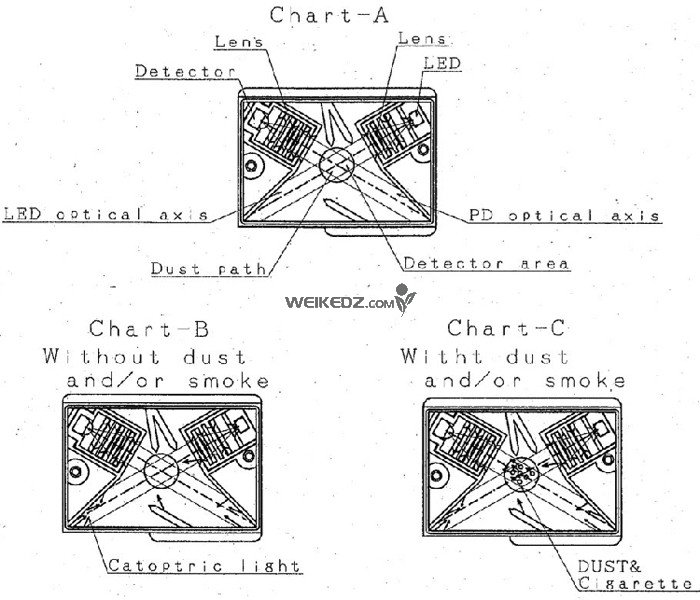

The device, an infrared light emitting diode and a phototransistor, diagonally arranged to allow the detected light reflected from the dust in the air
The sensor has an extremely low current consumption (maximum 20mA,11 Ma typical), can carry up to 7VDC sensors. Is an analog voltage output proportional to the measured concentration, sensitivity and 0.5V/0.1mg/m3
Specifications:
Power supply voltage: 5-7V
Operating temperature:-10-65 degrees Celsius
Current consumption: 20mA maximum
Smallest particles detected value: 0.8 micron
Sensitivity: 0.5V/(0.1mg/m3)
Clean-air voltage: 0.9V typical
Operating temperature:-10~65°
Storage temperature:-20~80°
Service life: 5 years
Size: 46mmx30mmx17.6mm
Weight: 15G
