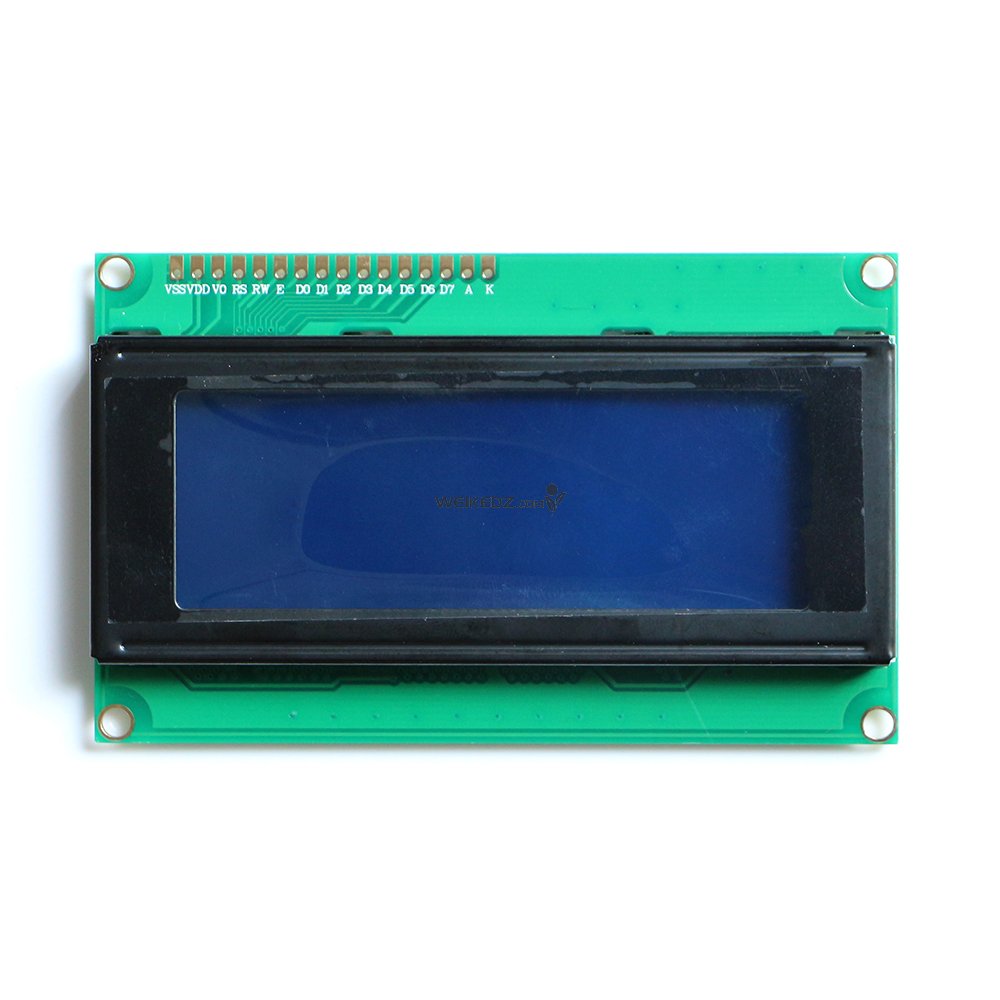

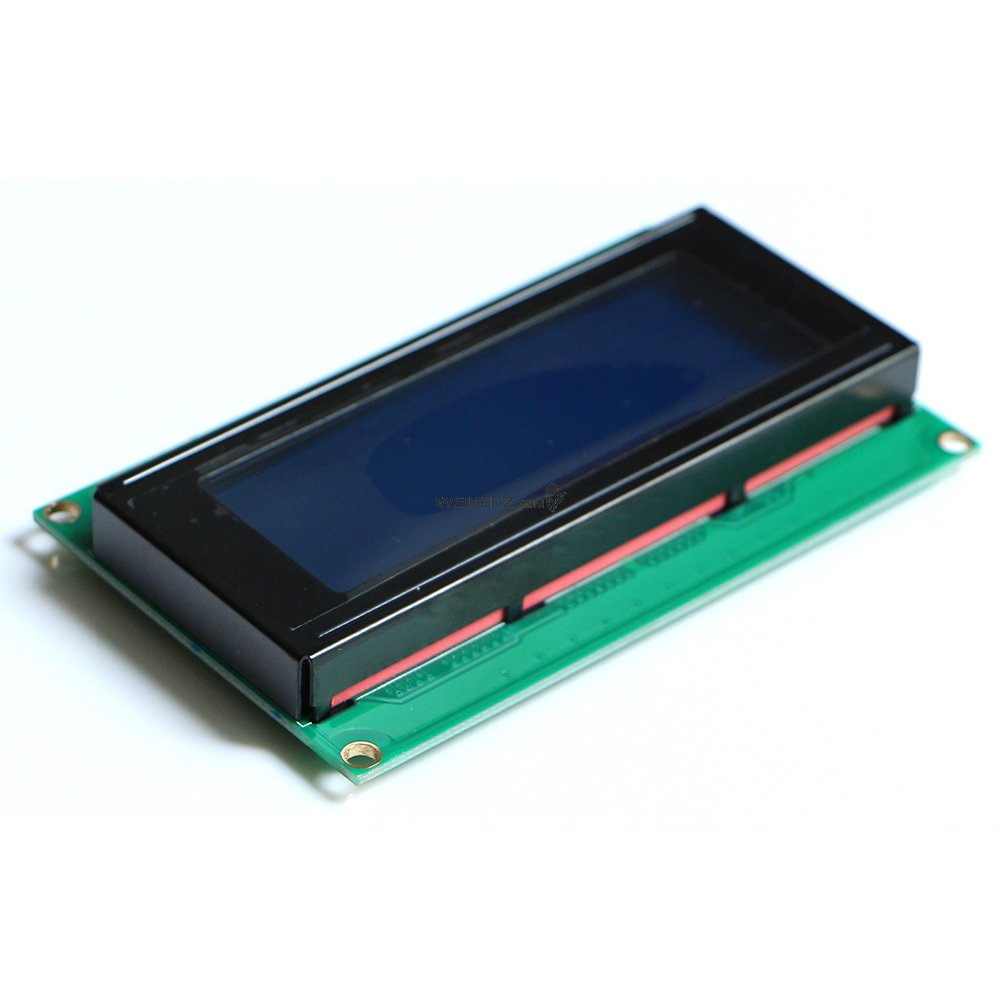

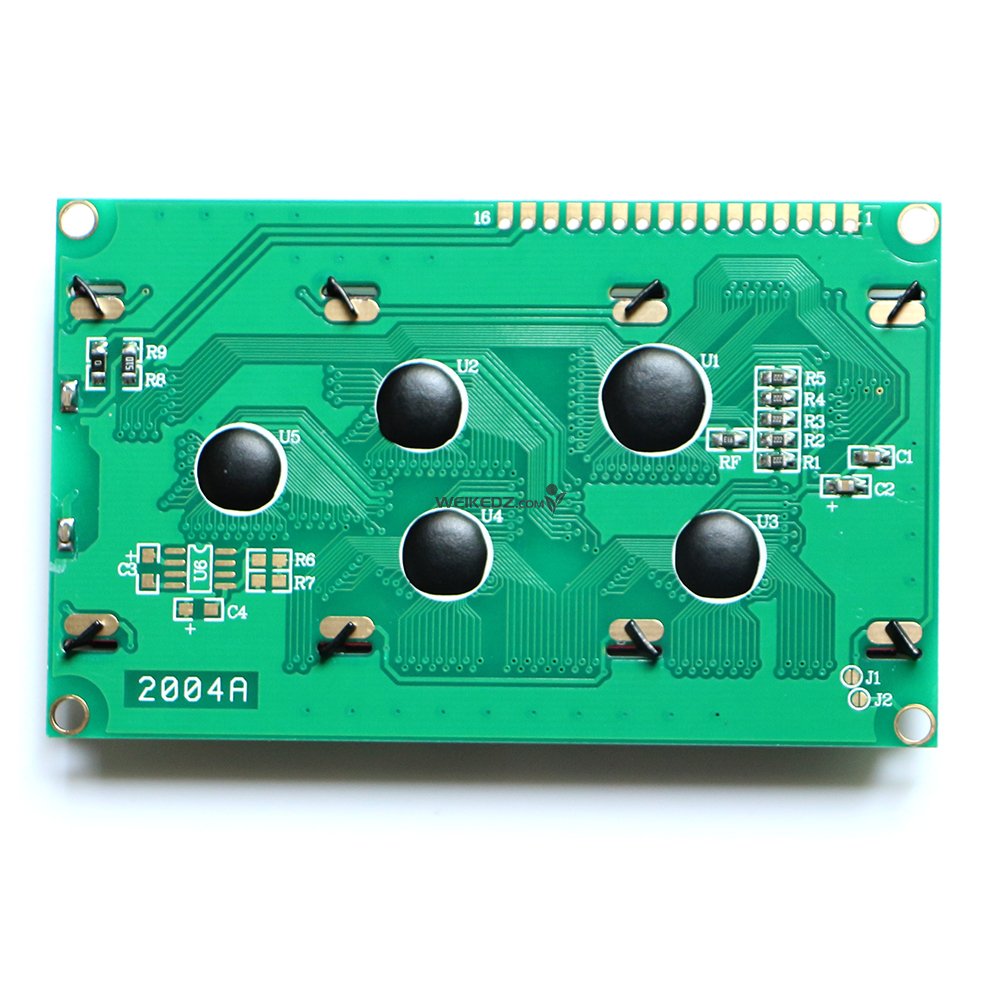

5V 2004 20X4 204 2004A LCD Display Module Blue Screen
$
Weike Electronics is a professional manufacturer and exporter that is concerned with the design, development production and marketing of arduino, 3d printers, raspberry pi and STM32. Our Dream is to make the best price and best quality produce for customers. So we would like to receive your valuable suggestions for our products and we can improve them for you.
Description: The 2004A character LCD module is designed to display letters, numbers, symbols, dot matrix. It can display 4 lines of 20 characters. Support 4-bit and 8-bit data transfer mode. Offers 5x7 matrix + cursor display mode. Providing display data buffer DDRAM, character generator CGROM and CGRAM. CGRAM can be used to store up to eight 5x8 dot matrix character font data graphic own definition. Provides a rich instruction set: clear display, cursor back to origin, display on / off, cursor on / off, display character blink, cursor shift, display shift and so on.
Specification: Module size(W x H x T): 98.0 x 60.0 x 14.0mm Viewing area(W x H): 76.0 x 26.0mm Character size(W x H): 2.94 x 4.74mm Dot size:(W x H): 0.54 x 0.54mm LCD type & color: STN(Blue), FSTN View angle: 6 O'clock Display type: positive / negative type Control IC & package: KS0073 or EQV, COB Operating temperature: -20°C - +70°C Storage temperature: -30°C - 80°C
