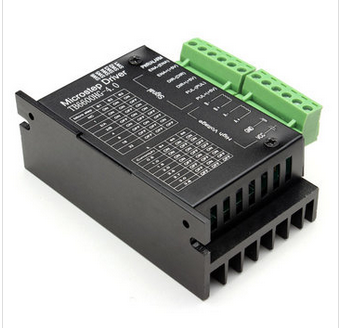

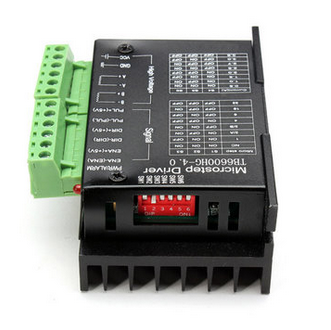

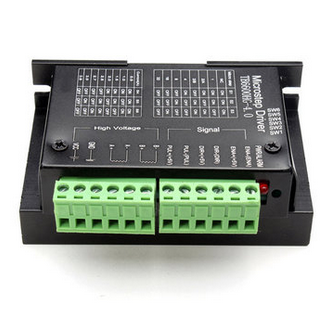

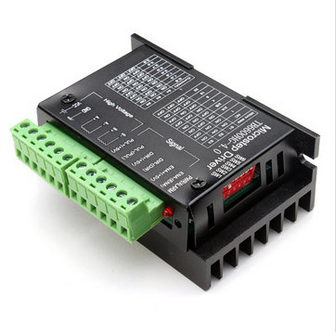

TB6600 Upgraded Version 32 Segments 4A 40V 57/86 Stepper Mot






Feature:

9V-40V DC power supply
H-bridge bipolar constant phase flow driver
The maximum output current is 4.0A (eight optional)
Up to 32 segments of six kinds of sub-modes available
The input signal high-speed photoelectric isolatio
Standard common anode single pulse interface
Offline keep function
Semi-enclosed chassis can adapt to a more demanding environment
Provide energy saving semiautomatic current lock function
Built-in thermal protection and over-current protection

Specification:

Voltage: up to 50V
ON resistance (upper + lower) = 0.4 Ω
Forward and reverse rotation control
5 kinds of sub-modes selectable (1/1, 1/2, 1/4, 1/8, 1/16 step)
Output current: IOUT = 5.0A (peak within 100ms)
Rated output: IOUT = 4.5 A
Input pull-down resistor: 100 KΩ
Current output alarm pin: Ialert = 1mA
Monitor output pin (MO): Imo = 1mA
With reset and enable pins
With a standby function.
Breaking the traditional single-supply
Built-in thermal protection (TSD) circuit
Built-in voltage protection (UVLO) circuit
Built-in over current detection (ISD), the circuit
