Key features:
1:Intelligent anti-burn,1X Can withstand up to 600V withstand voltage
2:Afterglow display technology
3:2.4 inch color display screen
4:100MHz analog bandwidth @ 500MS/s sampling rate(1X = 5MHz,10X = 100MHz)
5:One-button waveform storage
6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures
7:Powerful waveform file manager supports thumbnail browsing, viewing, details view, flip, delete, and other functions
8:High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V
9:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time
10:At any time, the waveform display (pause function) is frozen

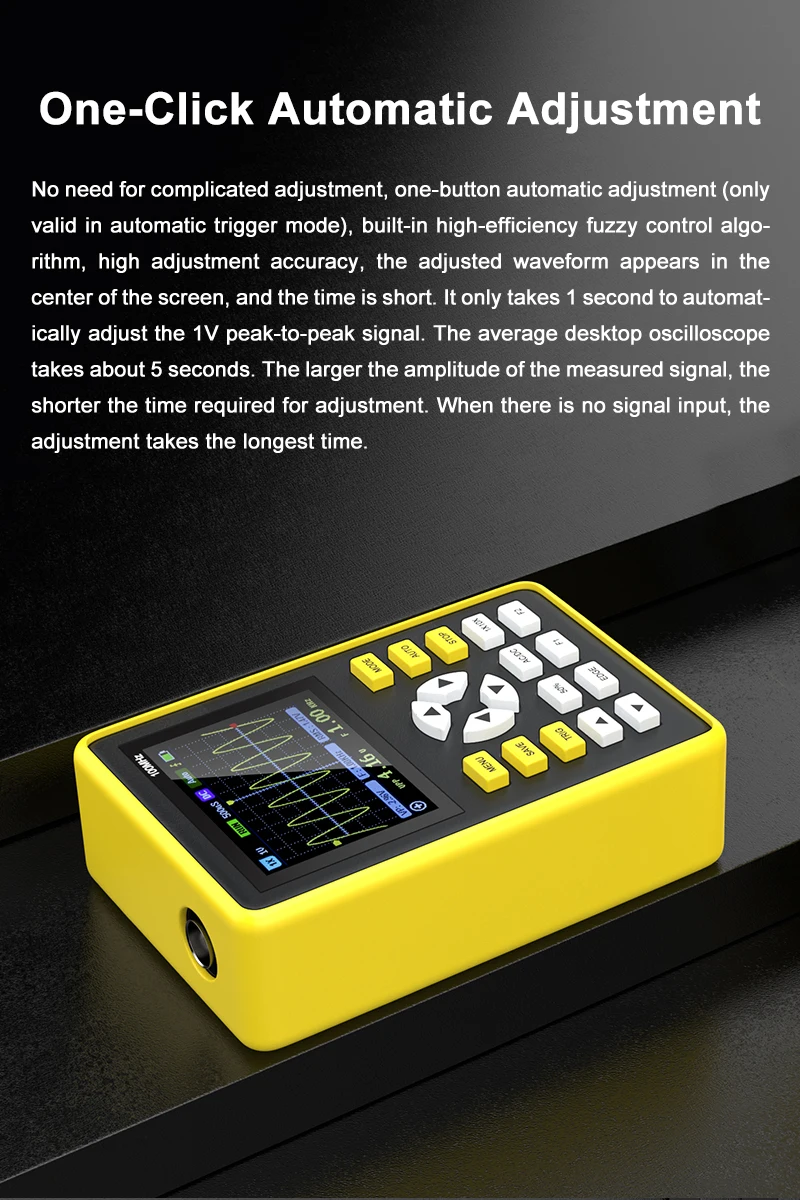

11:Equipped with high-efficiency One-button AUTO
12:Complete triggering function (single, normal, automatic)
13:Built in 3000mAh rechargeable lithium battery Fully charged for 8 hours of continuous use
14:Screen brightness adjustment
15:Memory compression technology, waveform refresh screen does not flicker
16:Anti-slip anti-drop silicone sleeve
17:Ultra small volume, easy to carry
Package includes:
1 x FNIRSI-5012H oscilloscope host
1 x Matching 100MHz probe(1X and 10X)
1 x Micro USB data line
1 x User manual (English)
1 x High-quality package
